Pre-Sale Option: Factory-activated node-locked license included at point of purchase
Adds 16 digital channels to main unit
Included P6316 MSO probe can split into two, 8-channel pods (with flying leads and grabbers for flexible connections)

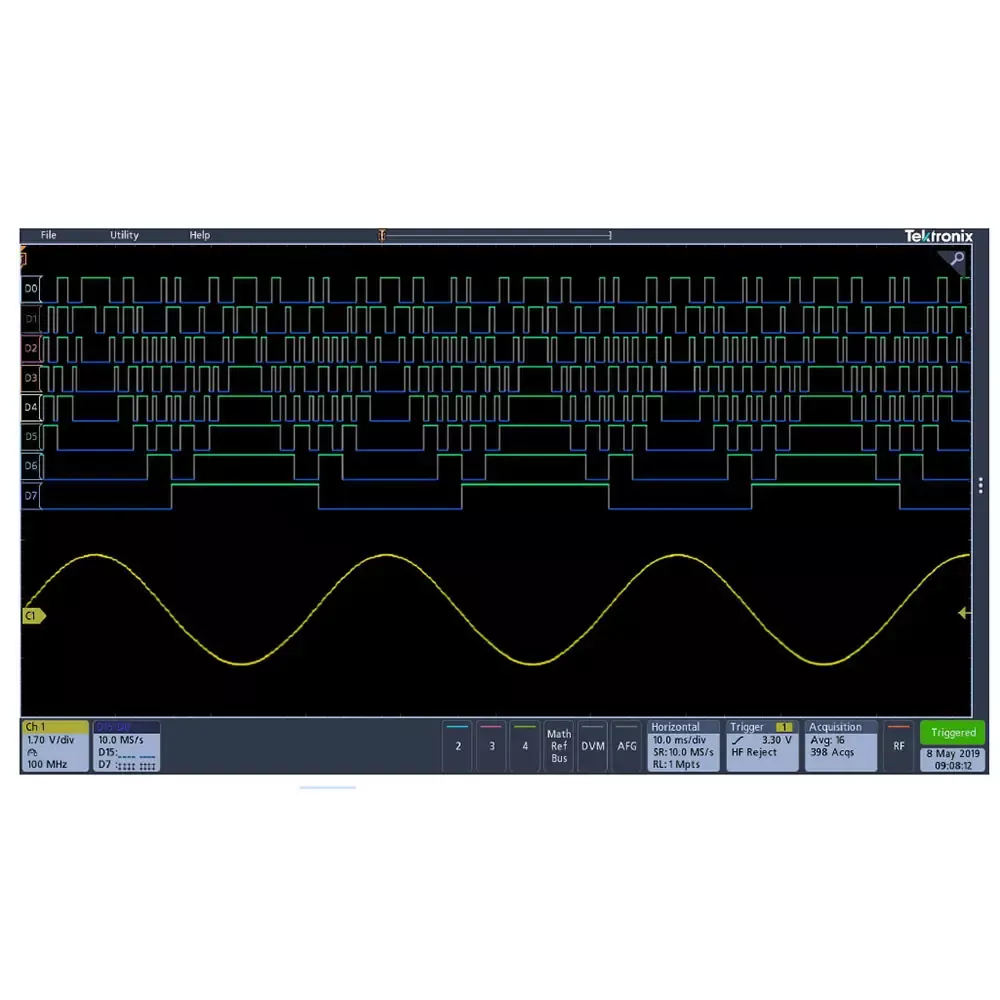

Color-coded digital waveform display: 1’s in green, 0’s in blue; transitions indicated for clarity
MagniVu high-speed acquisition for digital: Main records up to 500 MS/s (2 ns resolution); Ultra-high resolution 8.25 GS/s (121.2 ps resolution), up to 10k points stored around trigger
Parallel bus triggering means users can trigger on parallel data values up to 20 bits wide (from digital + analog channels), in binary or hex
10 M point record length on digital main acquisition
Input thresholds: per-group of 8 channels, select from TTL, CMOS, ECL, PECL, or user-defined
User-defined threshold: –15 V to +25 V
Maximum input voltage: –20 V to +30 V
Minimum swing for detection: 500 mV
Channel-to-channel skew: ~500 ps (typical)
Maximum input toggle rate: ~250 MHz (as a square-wave-equivalent)
For use with MSO22 and MSO24 (3 Series MDO) oscilloscopes
